These grabs are for handling coiled material having an open core such as steel and aluminum. The coil must be able to resist telescoping when lifted from the core. It the coil is unable to withstand this type of loading, it must be strapped in order to keep the coil from telescoping.
The pads on the Grab are designed to have a large surface area in order to keep from damaging the coil.

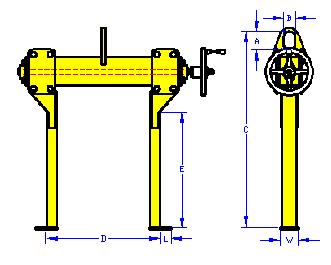

| Item Number | Capacity | Dim. A | Dim. B | Dim. C | Coil I.D. - Dim. D | Dim. E | Dim. L | Dim. W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | |||||||||
| 69-20-24-24 | 2,000 lbs | 4" | 2 1/2" | 41 3/4" | 16" | 24" | 24" | 2 1/2" | 4" | |
| 69-20-24-36 | 2,000 | 4 | 2 1/2 | 53 3/4 | 16 | 24 | 36 | 2 1/2 | 4 | |
| 69-40-24-24 | 4,000 | 4 | 2 1/2 | 43 | 16 | 24 | 24 | 2 1/2 | 4 | |
| 69-40-24-36 | 4,000 | 4 | 2 1/2 | 55 | 16 | 24 | 36 | 2 1/2 | 4 | |
| 69-60-24-24 | 6,000 | 5 | 3 | 44 3/4 | 16 | 24 | 24 | 2 1/2 | 4 | |
| 69-60-24-36 | 6,000 | 5 | 3 | 36 3/4 | 16 | 24 | 36 | 2 1/2 | 4 | |
| 69-100-24-24 | 10,000 | 5 | 3 | 43 1/4 | 16 | 24 | 24 | 2 1/2 | 5 3/4 | |
| 69-100-24-36 | 10,000 | 5 | 3 | 55 1/4 | 16 | 24 | 36 | 2 1/2 | 5 3/4 | |
| 69-150-24-24 | 15,000 | 7 | 4 | 46 1/8 | 16 | 24 | 24 | 2 1/2 | 5 3/4 | |
| 69-150-24-36 | 15,000 | 7 | 4 | 58 1/8 | 16 | 24 | 36 | 2 1/2 | 5 3/4 | |
| 69-200-24-24 | 20,000 | 7 | 4 | 49 1/4 | 16 | 24 | 24 | 2 1/2 | 5 3/4 | |
| 69-200-24-36 | 20,000 | 7 | 4 | 61 1/4 | 16 | 24 | 36 | 2 1/2 | 5 3/4 | |
| Dimensions given are in round numbers. We reserve the right to make changes to our designs at any time that may not be reflected in the table. Please ask for a Certified Dimension Print for current dimensions. | ||||||||||
The sizes and capacities listed above are a reference to the most common sizes of this equipment. If you have a different capacity, irregular size or some other need that must be met by our equipment, we will be happy to design one of these pieces of equipment to meet your special needs while also meeting or exceeding our interpretation of the appropriate ANSI / ASME. standards.
Improper use of lifting equipment may cause serious injury or death.
Only a Qualified Operator, as defined by the ASME B30.20 Standards, shall operate equipment.
Read and understand General Warnings before operating equipment.
