These grabs are for handling coiled material having an open core such as steel and aluminum. This grab only requires a narrow aisle for removal of tong arms enabling coils to be stacked close together and therefore saving valuable floor space.
The grabs operate using Down's standard worm gear box including our manual ratchet brake. This arrangement provides for two forms of braking on the grab to keep it from opening up under load.
The pads on the tong are curved and all parts that may contact the load are smoothly finished to minimize the chance of damaging the load.

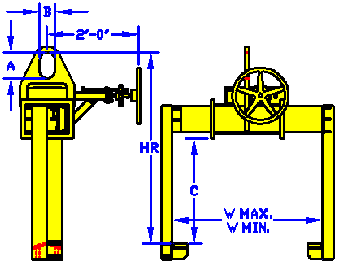

| Item Number | Capacity | Dim. A | Dim. B | Dim. C | Dim. HR | Dim. W | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | |||||||||
| 70-100-60 | 10,000 lbs | 5" | 3" | 20" | 43" | 20" | 60" | |||
| 70-150-60 | 15,000 | 7 | 4 | 22 | 45 3/4 | 20 | 60 | |||
| 70-200-60 | 20,000 | 7 | 4 | 24 | 48 3/4 | 20 | 60 | |||
| 70-300-72 | 30,000 | 9 | 5 | 28 | 58 1/2 | 24 | 72 | |||
| 70-400-72 | 40,000 | 9 | 5 | 33 | 63 3/4 | 24 | 72 | |||
| 70-500-72 | 50,000 | 12 | 6 | 35 | 72 3/4 | 24 | 72 | |||
| 70-600-72 | 60,000 | 12 | 6 | 36 | 73 1/4 | 24 | 72 | |||
| Dimensions given are in round numbers. We reserve the right to make changes to our designs at any time that may not be reflected in the table. Please ask for a Certified Dimension Print for current dimensions. | ||||||||||
The sizes and capacities listed above are a reference to the most common sizes of this equipment. If you have a different capacity, irregular size or some other need that must be met by our equipment, we will be happy to design one of these pieces of equipment to meet your special needs while also meeting or exceeding our interpretation of the appropriate ANSI / ASME. standards.
